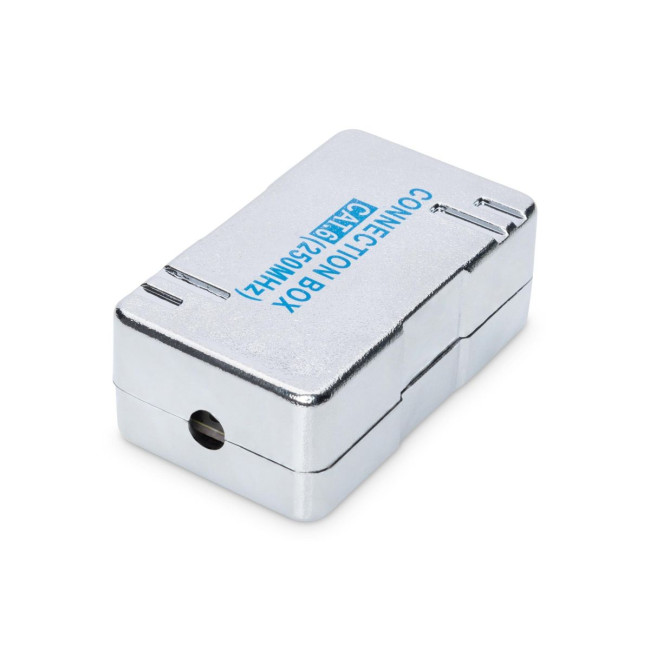

З'єднувач LSA, CAT 6, STP DN-93903 DIGITUS by ASSMANN

Опис З'єднувач LSA, CAT 6, STP DN-93903 DIGITUS by ASSMANN

DIGITUS CAT 6 Connection module for Twisted Pair Cablesconnection module for twisted pair cables LSA, shielded, CAT 6Future-oriented standards and high-end quality for your network. Transmission properties: Category 6 Area of application: Up to 250 MHz, 1GBase-T Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C General properties: Suitable for installation in trunking, surface and flush mount Cable installation via LSA stripes, color-coded as per EIA/TIA 568 A & B Suitable for connection of installation cables - extension of cables, replacing of defect cable links Integrated strain relief for installation cables Suitable for cables with AWG 22-26 diameter Technical properties: Housing material: ABS UL-94V-0 RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact RJ45 shielding: Tinned bronze LSA termination clamp: Krone LSA+, UL 94V-0, zinc plated phosphor bronze Conductor plate: FR4, UL 94V-0 Physical properties: Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) IDC wire size: 22 – 26 AWG solid and stranded conductor Insulation resistance: > 500 MOhm Contact resistance: < 20 MilliOhm Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
